Enlapser Construction Cameras

Enlapser Construction Cameras: 5K and Dual

Enlapser Camera Enlapser - Mounted Camera

The Builder.Cam service uses Enlapser cameras, designed and assembled in Finland specifically for construction site monitoring and timelapse filming.

Enlapser cameras are easy-to-install plug & play cameras that turn on when the camera is connected to mains power. With the Builder.Cam service, you receive a photo once every minute directly in your web browser.

The cameras have built-in SIM cards and work with two modems to guarantee operational reliability and operate anywhere in the European Union. Customized cameras are available for other locations. The cameras are weatherproof and pressure tested, and the heater keeps the window clear even in winter.

There are two camera models, one takes panoramic photos (Enlapser 5K) and the other streams live video and takes still photos at the same time (Enlapser Dual). All still photos are stored in the Builder.Cam service. The photo footage of both camera models are well suited to produce a timelapse video.

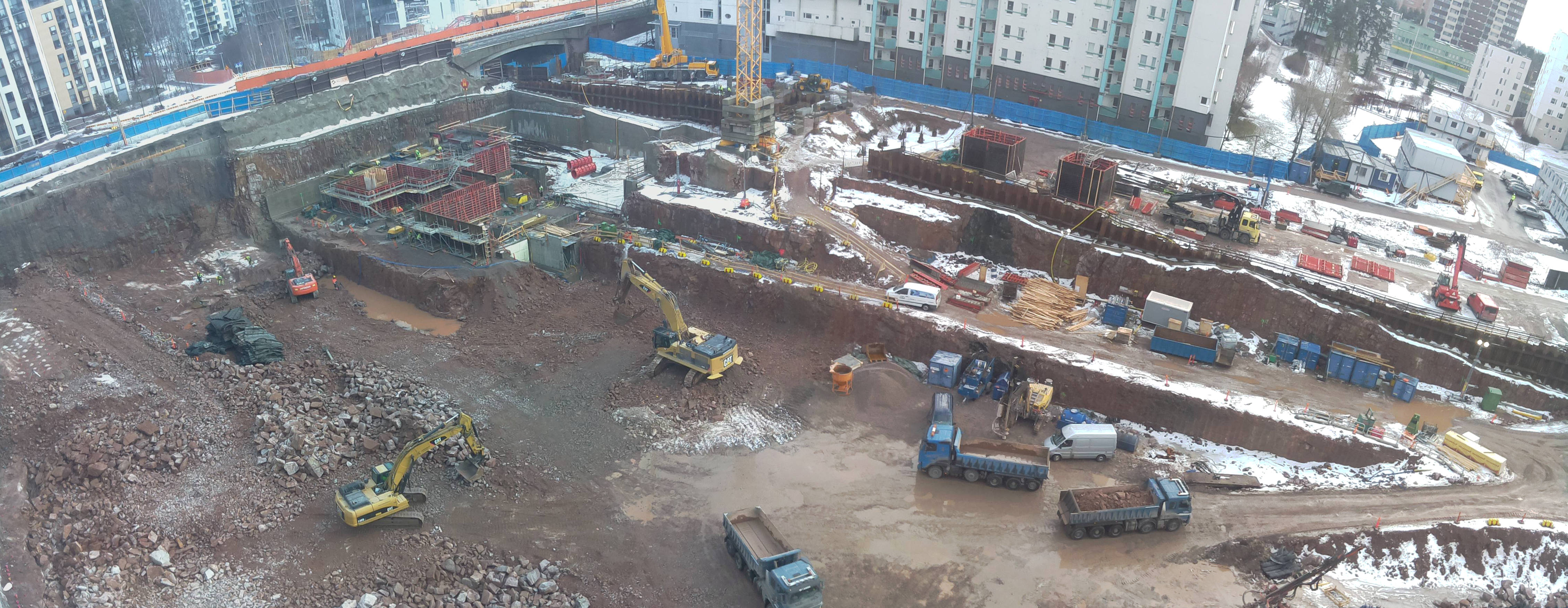

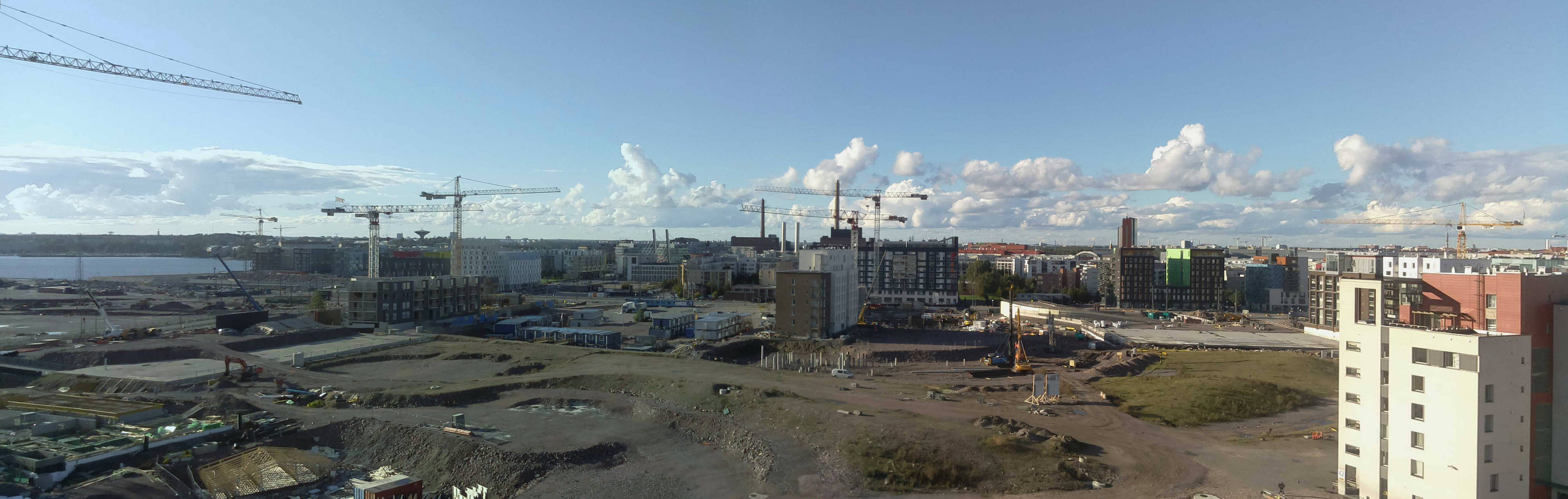

Enlapser 5K Panorama Camera

Still photos from two sensors are combined into a panorama that is over 5000 pixels wide. The horizontal angle for the 5K camera is 110°, so even a large construction site can fit into one photo. Choose a 5K camera when you want a beautiful wide-angle view of your workplace.

Enlapser Dual Combined Camera

One camera sensor sends live video stream, the other a still photo. The opening angle for the combined camera is 63°. Still photos are saved in the cloud service, video streams are not saved. Choose the combined camera when you also want a video stream of your workplace.

Note: Video streaming available in selected EU countries. Please ask for more information.

Warranty: 24 months.

Enlapser Construction Cameras - technical specification
+

Camera angle and resolution

  • Two overlapping sensors (5K) or two parallel sensors (Dual)
  • Camera angle from two sensors: ~110 x 48 degrees, one sensor 62 x 49
  • 5K resolution in combined panoramic photo
  • Video modes in Dual camera: 1920x1080 (Full-HD), 25 fps

Housing

  • Dimensions: 391 x 146 x 146 mm
  • Enclosure rating: IP66
  • Built-in heating element activated at ambient temperature below 15 °C
  • Can be installed and used in all weather

Camera Sensor

  • Sensor: 2 x Sony IMX219PQ Color CMOS (8 megapixels)
  • Sensor size: 3,674 x 2,760 mm
  • Resolution: 2 x 3280 x 2464
  • Pixel size: 1.12 x 1.12 um * Lens: f = 3.04 mm, f / 2.0
  • Camera angle: 62 x 49 degrees
  • Equivalent to: 29mm SLR lens

Connection

  • 4G network, 2 modems

Requirements

  • 120 to 230V mains voltage (average power requirement 20 W)
  • Active service subscription
